Hybrid Shoulder
User manual · Model 03K-SH
Everything you need to set up, use, and care for your Hybrid Shoulder.

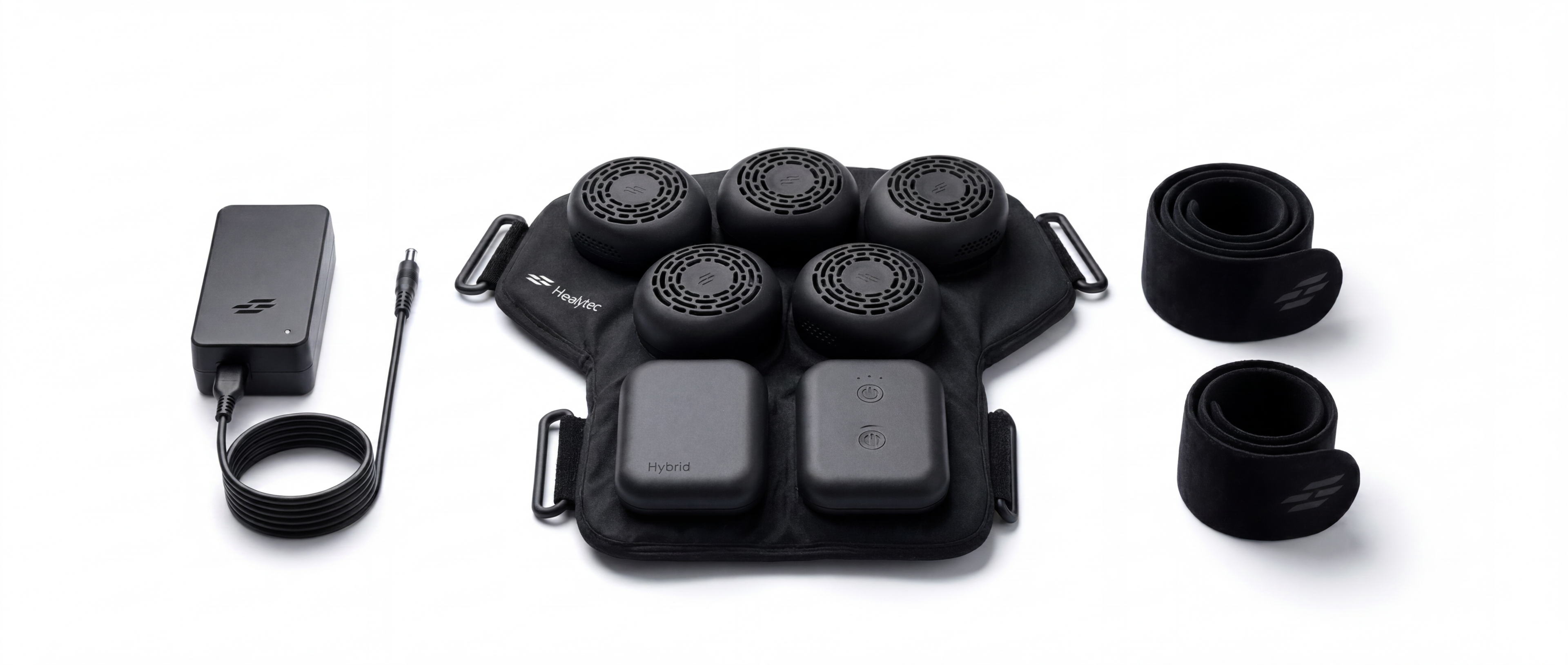

In the box
- Hybrid Shoulder device
- Two sets of straps, small and large
- DC charger, 9 V 10 A, with a plug for your country
- User manual
Setup and use
Know your Hybrid
- Mode button. Press to switch between heat, cold, and contrast.
- Mode light. Shows the mode, and what the device is doing right now. Orange means heating. Blue means cooling.
- Power button. Hold for 1.5 seconds to turn on or off. Press briefly to change the heat level.
- Heat level lights. One, two, or three lights show the heat level.
- Battery lights. White shows charging. Red shows low battery.
- Charging port. For the included 9 V charger.
Charge it
Charge fully before your first session. A full charge takes about 4 hours. Use only the included charger.
- White light on: charging.
- White light off: fully charged.
Put it on
- Place the device over the top of your shoulder.
- Fasten the short straps around your arm, then the long straps around your chest.
- Snug, not tight. Adjust until it feels secure and comfortable.
Turn it on
Hold the power button for 1.5 seconds. The mode light fades in, and the device starts in the mode and heat level you used last. The very first time, it starts in heat, level 1.
To turn it off, hold the power button again. The lights fade out.
Choose a mode
Press the mode button to go from heat, to cold, to contrast, and back to heat. The mode light changes colour each time.
Heat. Loosen up.
Use it before training, to warm up. Press the power button briefly to go from level 1, to 2, to 3, and back to 1.
Light: orange, breathing slowly. The heat level lights show the level.
Cold. Cool down.
Use it after training. The cooling surface reaches -10°C plugged in, and 0°C to 5°C on battery.
Light: blue, breathing slowly. The heat level lights are off.
Contrast. Reset.
Use it between sessions or on rest days. A guided session of about 15 minutes: 3 minutes of heat, then 2 minutes of cold, three times. It starts warm, ends cold, and switches off on its own. You can change the heat level during the warm phases.
Light: when you select contrast, the light blends blue and orange twice. Then it breathes faster than in the other modes, orange while heating and blue while cooling. Between phases, it slowly blends from one colour to the other.
Read the lights
Mode light
- Orange, slow breathing: heat.
- Blue, slow breathing: cold.
- Blue and orange, blending twice: contrast selected.
- Orange, fast breathing: contrast, warm phase.
- Blue, fast breathing: contrast, cold phase.
- Slow blend between colours: contrast, changing phase.
- Fading out: turning off.
Heat level lights
- 1, 2, or 3 lights: heat level 1, 2, or 3.
- All off: cold, or the cold phase of contrast.
Battery lights
- White, on: charging.
- White, off: fully charged, or not plugged in.
- Red, blinking: battery low. Charge soon.
- Red, 3 quick flashes: battery empty. The device turns off, or won't turn on, until you charge it.
- Red, 3 slow flashes when turning on: the device restarted itself after a fault. If it happens again, contact us.
Plugged in or cordless
Plugged in, the device runs at full power. The cooling surface reaches -10°C, and the battery charges at the same time. Cordless, the cooling surface holds 0°C to 5°C, so you can move freely.
On a full charge: up to 40 minutes of cold, or up to 80 minutes of heat or contrast.
Automatic off
The device turns itself off 20 minutes after your last button press, in any mode. A contrast session turns off on its own when it ends.
After your session
- Wipe with a soft, damp cloth.
- Wash the straps and let them dry fully before use.
- Store somewhere cool and dry.
- Not waterproof. Keep it dry.
Safety
- Don't use on broken or irritated skin.
- Stop if you feel numbness, pain, or discomfort.
- Keep sessions to 15 minutes on one area, 20 minutes maximum.
- Don't fall asleep wearing it.
- If you have a medical condition, reduced sensitivity to cold or heat, are pregnant, or are recovering from surgery, ask your doctor before use.
- Not for use by anyone under 12.
- Don't use if the device or cables look damaged.
- Don't open or modify the device.
For general wellness. Not a medical device.
Warranty and support
2-year warranty from the date of purchase.
Contact us at customersupport@healytec.com
